  • Just like a teenager wanting to be older, volcanoes can lie about their age or at least about their activities. For kids, it might be little white lies, but volcanoes can tell big lies with big consequences.

    Research by Richard Holdaway, Ben Kennedy and Brendan Duffy, published in Nature Communications, uncovers one such volcanic lie. This article summarises their research and is republished from The Conversation under Creative Commons licence CC BY-ND 4.0.

    Accurate dating of prehistoric eruptions is important as it allows scientists to correlate them with other records, such as large earthquakes, Antarctic ice cores, historical events like Mediterranean civilisation milestones and climatic events like the Little Ice Age. This gives us a better understanding of the links between volcanism and the natural and cultural environment.

    Rights: GeoNet

    Taupō

    A caldera volcano that last erupted about 1,800 years ago. This eruption was the most violent the world has experienced in the past 5,000 years. The lake covers many separate vents, three of which were involved in the last eruption.

    Acknowledgement: GeoNet

    Taupō’s last violent eruption

    Lake Taupō, in the North Island of New Zealand, is a globally significant caldera supervolcano. The caldera formed after the collapse of a magma chamber roof following a massive eruption more than 20,000 years ago.

    Now it seems that the Taupō eruption that occurred in the early part of the first millennium has been lying about its age. But like many lies, it was eventually found out, and it reveals exciting processes that hadn’t been understood before.

    The eruption of Taupō in the first millennium has been dated many times with radiocarbon, yielding a surprisingly large spread of ages between 36CE and 538CE.

    Radiocarbon dating of eruptions

    Radiocarbon dating of organic material is based on the concentrations of radioactive carbon-14 in a sample remaining after the organisms’ death. Over the past two decades, the method has been refined greatly by combining it with dendrochronology – the study of the environmental effects on the width of tree rings through time.

    Radiocarbon dating of tree ring records has allowed scientists to construct a reliable record of the concentration of carbon-14 in the atmosphere through time.

    In principle, this composite record allows eruptions to be dated by matching the wiggly trace of carbon-14 in a tree killed by an eruption to the wiggly trace of atmospheric carbon-14 from the reference curve (“wiggle-match” dating).

    Scientists presently use wiggle-match dating as the method of choice for eruption dating, but the technique is not valid if carbon dioxide gas from the volcano is affecting a tree’s version of the wiggle.

    The effect of volcanic carbon on eruption ages

    Holdaway, Duffy and Kennedy’s research reanalysed the large series of radiocarbon dates for the Taupō eruption and found that the oldest dates were closest to the volcano vent. The dates were progressively younger the further away they were.

    Rights: Richard Holdaway, Ben Kennedy and Brendan Duffy, CC BY-ND 4.0

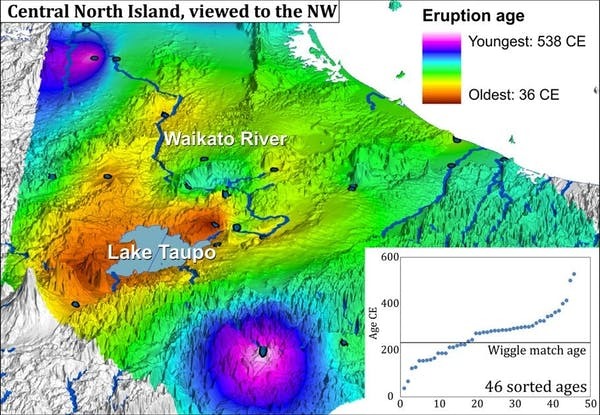

    Central North Island eruption ages

    This graph shows all of the ages obtained for the Taupō first millennium eruption, sorted by age, plotted on a digital model of the North Island of New Zealand. Lake Taupō is the caldera from which the eruption occurred. The oldest ages for the eruption are clustered around Lake Taupō, and older ages are located further from the volcano. Researchers interpret this pattern as being caused by contamination of red areas with volcanic carbon dioxide.

    This unusual geographic pattern has been documented very close (less than a kilometre) to volcanic vents before, but never on the scale of tens of kilometres. Two wiggle-match ages taken from the same forest located about 30 km from the caldera lake were among the oldest dates from the series of dates.

    This enlarged influence of the volcano can be explained by the influence of groundwater beneath the lake and its surroundings. The Taupō wiggle-match tree grew in a dense forest in a swampy valley where volcanic carbon dioxide was seeping out of the ground and was incorporated in the trees.

    Rights: Richard Holdaway, Ben Kennedy and Brendan Duffy, CC BY-ND 4.0

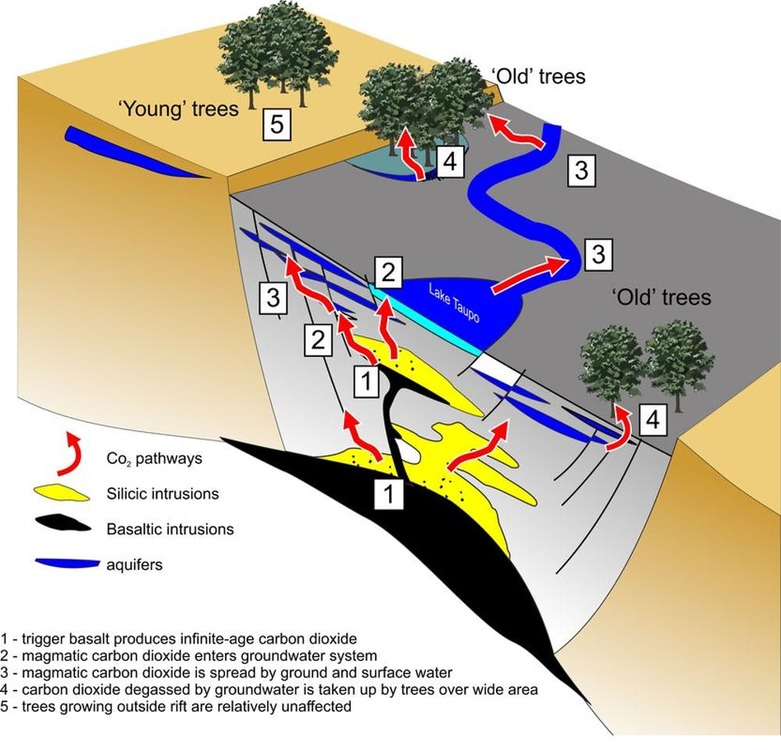

    CO₂ pathways through groundwater systems

    This conceptual image shows how gas from the triggering event, decades before the eruption, works its way into the groundwater system and is eventually incorporated in the wood of the trees that are dated.

    The ratio of carbon-13 to carbon-12 (the two stable isotopes of carbon) in the modern water of Lake Taupō and the Waikato River tells us that volcanic carbon dioxide is getting into the groundwater from an underlying magma body.

    Can large eruptions be forecast over decades?

    The study shows that a large and increasing volume of carbon dioxide gas containing these stable isotopes was emitted from deep below the prehistoric Taupō volcano. It was then redistributed by the region’s huge groundwater system, ultimately becoming incorporated into the wood of the dated trees.

    The increase was sufficiently large over several decades to dramatically alter the ratios of different carbon isotopes in the tree wood. The forest was subsequently killed by the last part of the Taupō eruption series, but the dilution of atmospheric carbon-14 by volcanic carbon made the radiocarbon dates for tree material from the Taupō eruption appear somewhere between 40 and 300 years too old.

    The precursory change in carbon ratios gives us a way to gain insight into the forecasting of future eruptions – a central goal in volcanology. The authors found that the radiocarbon dates and isotope data that underpin the presently accepted wiggle-match age reached a plateau (they stopped evolving normally). This meant that, for several decades before the eruption, the outer growth rings of trees had weird carbon ratios, forecasting the impending eruption.

    The researchers reanalysed data from other major eruptions, including at Rabaul in Papua New Guinea and Baitoushan on the North Korean border with China, and found similar patterns. The anomalous chemistry mimics but exceeds the Suess effect, which reversed the carbon isotopic evolution of post-industrial wood. This implies that measurements of carbon isotopes in 200–300 annual rings can track changes in the carbon source used by trees growing near a volcano, providing a potential method of forecasting future large eruptions.

    The researchers anticipate that this will provide a significant focus for future research at supervolcanoes around the globe.

    Nature of science

    This study touches on several aspects of the science capabilities and the nature of science. The researchers used, critiqued and interpreted evidence to discover a reason for the large spread of Taupō eruption dates. Their work also highlights the tentative nature of scientific knowledge.

    Related content

    The article Exploding Taupō provides background information about the Taupō Volcanic Zone (TVZ), which extends from Mt Ruapehu through Rotorua to White Island.

    The article Volcanology methods explains some of the different methods used to study volcanoes, ranging from fieldwork to lab techniques.

    Discover more about radiocarbon dating including an interactive that shows the steps in the C-14 carbon dating process.

    The activity Calderas in the sandpit is a simple demonstration of how caldera volcanoes like Taupō and Rotorua were formed.

    Useful links

    The authors of this article included a number of links to related research papers and articles.

    Anticipating future Volcanic Explosivity Index (VEI) 7 eruptions and their chilling impacts, which reviews and correlates historical and geological evidence.

    The Thera olive branch, Akrotiri (Thera) and Palaikastro (Crete): comparing radiocarbon results of the Santorini eruption – a discussion about radiocarbon dating of an ancient olive branch buried by volcanic tephra.

    Revised calendar date for the Taupo eruption derived by 14C wiggle-matching using a New Zealand kauri 14C calibration data set explains how wiggle-matching was used to determine an eruption date of AD 232 ± 5 (1718 ± 5 cal. BP) for the Taupō event.

    Forecasting volcanic eruptions explores factors that aid modelling and forecasting.
